City of Hamburg (Ro-Ro Cargo)

CITY OF HAMBURG (IMO: 9383558) is a Ro-Ro Cargo that was built in 2008 and is sailing under the flag of France.

Her carrying capacity is 15643 Gross Tonnage and her current draught is reported to be 4.7 meters. Her length overall (LOA) is 126.5 meters and her width is 20.6 meters.

Works:
Painting works

Flat bottom
High pressure water jet  300 bar
Degreasing
Hand scrapping barnacles
Full grit blasting  Sa 2,5
Wash
Grit blasting  Sa 1
Wash  before painting
F/C JOTAMASTIC 90 WG RED           125 DFT
F/C JOTAMASTIC 90 WG Al               125 DFT
F/C SAFEGUARD UNIVERSAL            100 DFT
F/C SEAQUANTUM X200-3,LIGHT RED 90 DFT
F/C SEAQUANTUM X200-3,DARK RED  85DFT

VERTICAL SIDES
High pressure water jet  300 bar
Degreasing
Hand scrapping barnacles
Full grit blasting  Sa 2,5
Wash
Grit blasting  Sa 1
Wash  before painting
F/C JOTAMASTIC 90 WG RED            125 DFT
F/C JOTAMASTIC 90 WG Al                125 DFT
F/C SAFEGUARD UNIVERSAL             100 DFT
F/C  SEAQUANTUM X200  , RED         160 DFT
F/C SEAQUANTUM X200  DARK RED 160DFT

Topside Blue
High pressure water jet  300 bar
Cleaning chemical
Mechanical cleaning St 2
Wash  before painting
T/C  JOTAMASTIC 90 WG RED           150 DFT
T/C  JOTAMASTIC 90 WG WHITE      150 DFT
F/C HARDTOP XP,RAL 5022 BLUE         60DFT

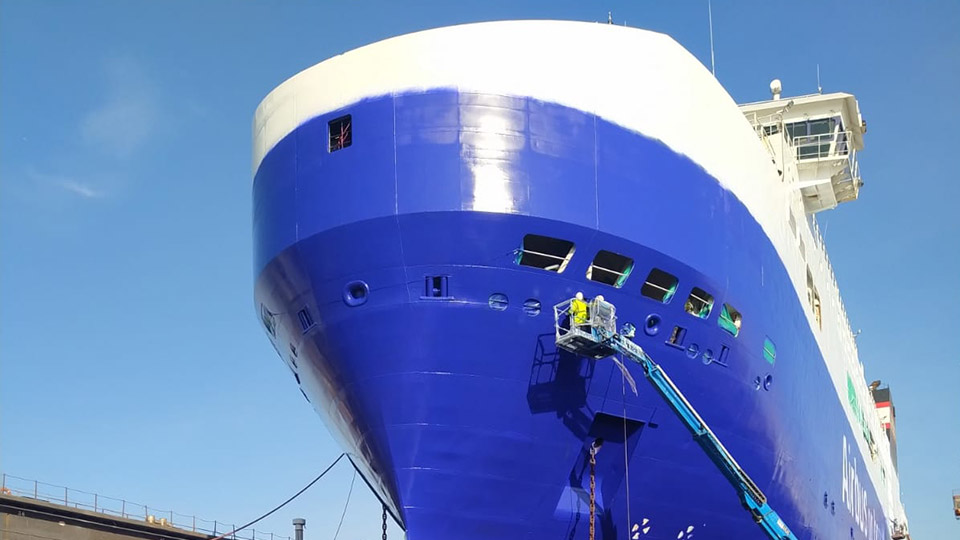

Upper Topside White
High pressure water jet  300 bar
Cleaning chemical
Mechanical cleaning St 2
Wash  before painting
T/C  JOTAMASTIC 90 WG RED           150 DFT
T/C  JOTAMASTIC 90 WG WHITE      150 DFT
F/C HARDTOP XP,WHITE                        60DFT

Markings
Standard hull marks vessel 101m < L < 200m
only repainting /no tracing/no extra lines
no logos/side names
Extra lines
Logo AIRBUS on board 1 coat
only repainting

Protections

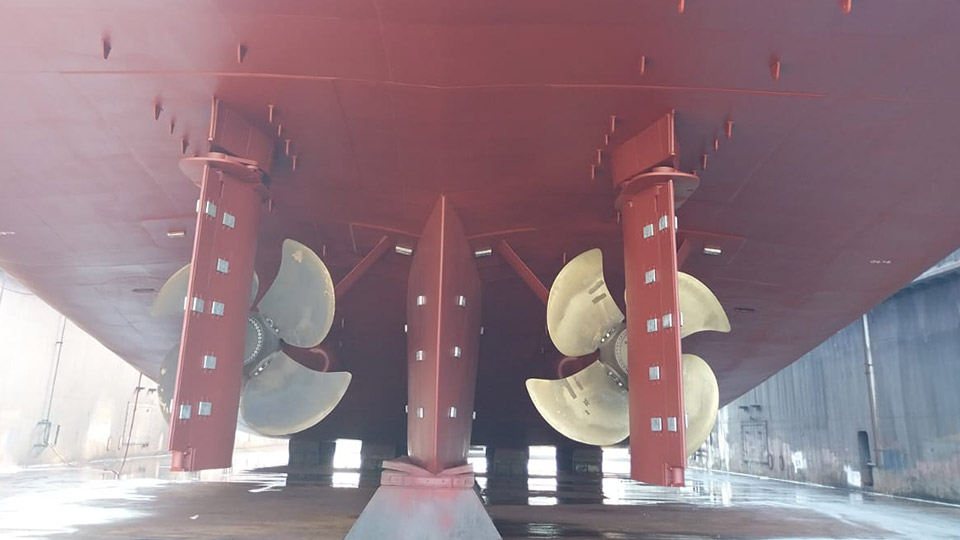

Main Propeller (before sandblasting)
Main Propeller (before painting work)
Echo sounders/speed log/tranducers
Thrusters (before sandblasting)
Thrusters (before painting work)
Sacrificial anodes
ICCP anodes per piece
Scupper plugs
Portholes, openings and windows up to 1m2

Chains and anchors
Anchors and chains HP washing
Chains shackles marking with paint
Painting Anchors

Year built – 2008

Flag – France
